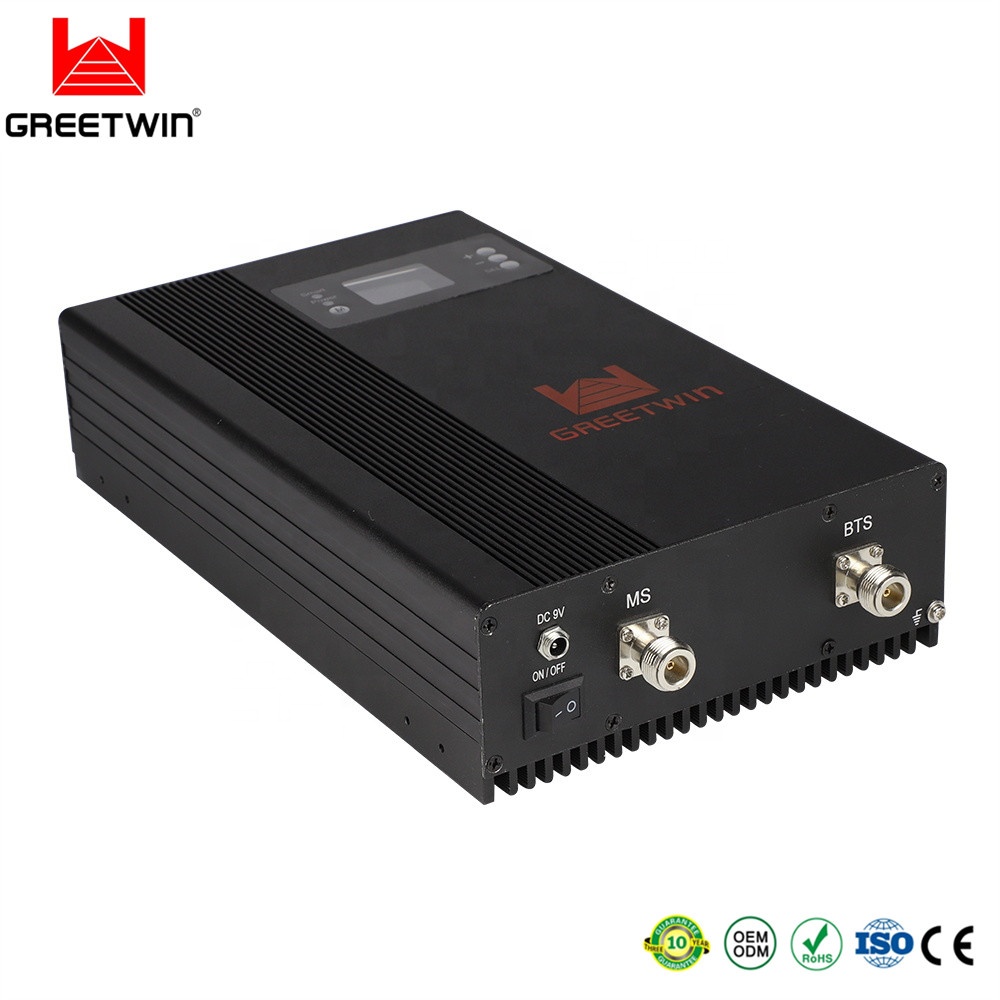

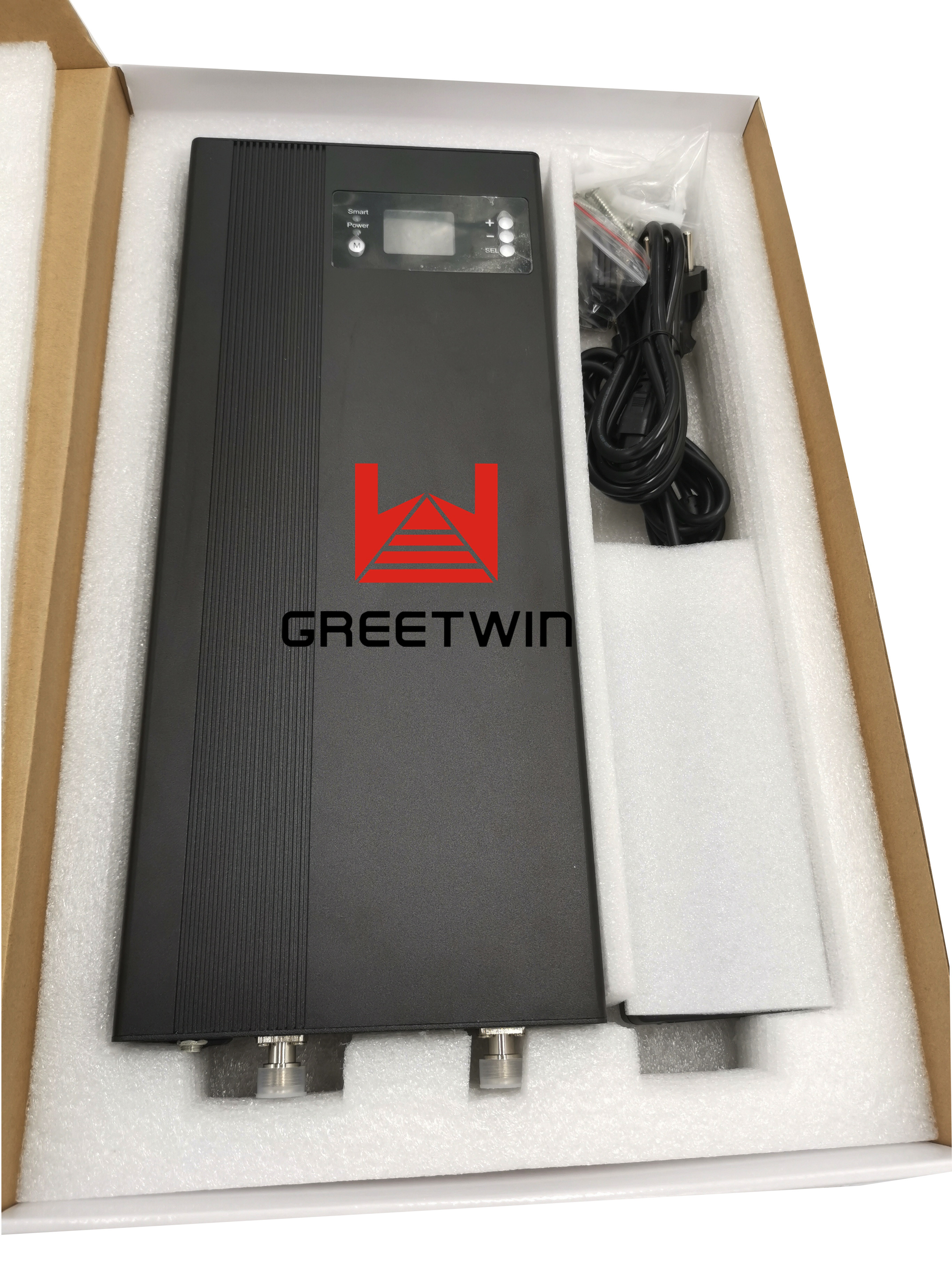

2500sqm Mobile Signal Booster GSM CDMA 800MHz PCS1900 LTE2600 N Female

Brand Name : Greetwin

Model Number : GW-23CPL-K

Certification : SGS, ISO9001,CE

Place of Origin : China

MOQ : 1

Price : US $ 258 / PC

Payment Terms : T/T, L/C

Supply Ability : 2, 000PCS/Month

Delivery Time : 15work days

Packaging Details : Neutral Packing

Max. Gain : 75dB

Max. Output Power : 23dBm

RF Connector : N-Female

Cooling : Heatsink Convection Cooling

Operating Temperature : -10 C ~ +55 C

Installation Type : Wall Installation

Weight : 5.5kg

Manual Gain Control : 31dB / 1dB Step

Coverage : 2500sqm

Alc : >25dB

Contact Now

Tri-band 23dBm GSM CDMA800/850 PCS1900 LTE2600 mobile signal booster 3g 4g lte

Frequency Range Uplink Downlink
CDMA 800/GSM 850MHz 824-849MHz 869-894MHz
PCS 1900MHz 1850-1910MHz 1930-1990MHz
LTE 2600MHz 2500-2570MHz 2620-2690MHz
Gain 70dB±2dB 75dB±2dB
Output Power 18dBm±2dBm 23dBm±2dBm
Band width Wide Band
Manual Gain Control 31dB / 1dB Step
ALC ≥ 20dB
Ripple in Band 8dB
Noise Figure ≤ 6dB
VSWR ≤ 2.0
Intermodulation Products ≤ -40dBc
Spurious Emission 9KHz~1GHz ≤ -36dBm/30KHz
1~12.75GHz ≤ -30dBm/30KHz
Time Delay ≤ 1.5 μs
Frequency stability ≤ 0.01ppm
MTBF > 50000 hours
Impedance 50Ω
Power Supply AC 90-264V,DC 10V/6A
Power LED Power indicator
Alarm LED Red Self oscillation or Strong input signal
Green Normal
Mechanical Specification
RF Connector N-Female
Switch Power Switch
Cooling Heatsink Convection cooling
Humidity < 90%
Operating Temperature -10°C ~ +55°C
Environment Conditions IP40(Indoor)
Installation Type Wall Installation
Size 354mm*268mm*58mm
Weight < 6.5Kg

2500sqm Mobile Signal Booster GSM CDMA 800MHz PCS1900 LTE2600 N Female

2500sqm Mobile Signal Booster GSM CDMA 800MHz PCS1900 LTE2600 N Female2500sqm Mobile Signal Booster GSM CDMA 800MHz PCS1900 LTE2600 N Female

Product Manual

Indoor Tri Band Signal Repeater (Signal Booster) series is an ideal solution for three wireless system in small/medium businesses and home users looking to enhance indoor wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area. And Automatic Gain Control (AGC) to avoid the Booster from over saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking & super compact design also make it attractive. Besides, it is easy installation feature is also for individual customers to install the booster by themselves, and it does not need much professional knowledge and instrument.

The signal booster improves mobile signals with no negative impact on human health.
